Home(Products) > MS9000SAN-III Options

MS9000SAN-III Rework Station

Options

1. Re flow Nozzle: It choose according to the size.

2. Wide Bottom Heater: It must be equippped by us.

3. Tweezers Nozzle. For Chip size parts reworking.

4. Sensor Kit: it consisted of 5 sensors with Lead wire.

5. Test Board Kit: It is for calibration for vision system.

6. Solder Printing Tool: Model SND-N (Transcriber type)

7. Re-balling Tool: Manual re-balling Jig.

8. PCB Prevention Jig: for preventing warp of the board.

9. BGA Scope: Visual check of the BGA ball.

10. X Ray Inspection System: soldering check

11. RBC-1 Reballing and printing Tool reballing & printing

Nozzles

Tweezers Nozzle

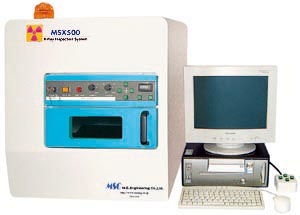

MSX500 X Ray Inspection System ST50K Sensor Kit

OP-TB01 Test Board Kit

Board prevention Jig

>>Next Page
